| Resistance | +10% -5% | Overall Thickness | 15 mm |
| Wattage | +5% -10% | Minimum Dia. | 38 mm |
| Max. Watt Density | 8 watts / sq.cm | Minimum Width | 25 mm |
| Voltage | 220V AC to 480V AC | Width – Normal | Multiple of 15 + 6mm |
| Maximum Temp | 800 oC | Std. gap between edges | 5 to 10 mm |

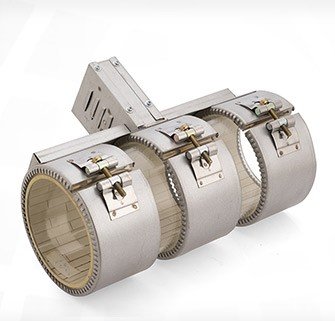

CERAMIC DIE HEATERS
people are viewing this right now
Ceramic Die Heaters manufactured in two half’s & provided with spring loaded clamping system provides excellent grip of the heater mounted vertically. Heaters are provided with inside cover to protect against frequent dismantling of dies.
APPLICATION
- ✦ Blow Molding Machine
- ✦ Extrusion Line
Guaranteed Safe Checkout
- Free worldwide shipping on all orders over $100
- Delivers in: 3-7 Working Days Shipping & Return
Installation and Maintainance
-
Ordering Information
- ✦ Select from the sketch given below in which category your heater falls to ensure no fitment problem
- ✦ Give all necessary information preferably in millimeter
- ✦ We are in a position to manufacture and supply Ceramic Die Heater which do not fit any of the following sketches. Kindly give us detailed sketch
LEGEND / TECHNICAL FEATURES / TECHNICAL DATA
- ✦ L – Length Of Heater
- ✦ W – Width Of Cutout
- ✦ LI – Location Of Terminal Box
- ✦ TI – Depth Of Cutout
- ✦ DØ – Inside Diameter Of Heater
- ✦ D1 – Degree Of Terminal Box
- ✦ T – Location Of Thermocouple Hole
- ✦ D2 – Degree Of Thermocouple Hole
- ✦ THØ – Thermocouple Hole Diameter
- ✦ D3 – Degree Of Cutout
- ✦ WL – Wire Length
